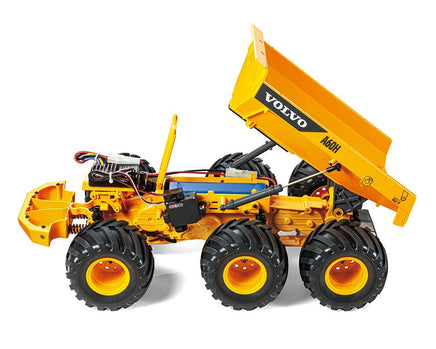

The Tamiya Volvo A60H Hauler 6x6 1/24 G6-01 Semi Tractor Kit is a fun fictitious 6-wheeler. This truck recreates a subject in the form of a working vehicle: Volvo’s A60 hauler. The actual vehicle is a revolutionary design, offering exceptional flexibility and mobility as well as the sheer strength required to haul loads in quarries and other similarly grueling workplaces.
G6-01 Chassis

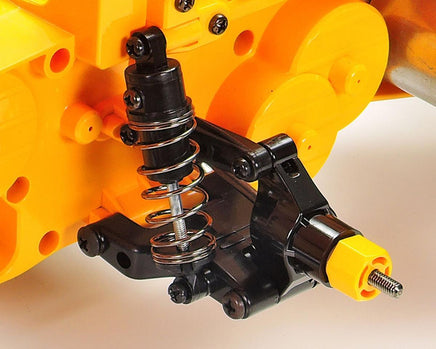

The fun G6-01 chassis is based around a tough, slimline monocoque frame and offers excellent off-road performance thanks to a 6-wheel drive system. Power is provided by a motor behind the front wheels, and transmitted to front, center and rear wheels via gears. The gearbox is sealed to protect from dust and debris and integrated into the frame; it has built-in front, center and rear differential gears to provide smooth cornering. 6-wheel double wishbone suspension is fitted with friction dampers. A 2-piece steering tie-rod setup utilizes the servo on the left for excellent response. With suspension reassembly and a separately-sold transmitter with 4WS function and R/C equipment, the rear wheels can be made steerable.
NOTE: Finished kit shown in photos is for illustrative purposes only. This is a kit that requires assembly. See needed to complete list below for a list of items required to complete the model.
NOTE: Finished kit shown in photos is for illustrative purposes only. This is a kit that requires assembly. See needed to complete list below for a list of items required to complete the model.
Features:
- 1/24 scale R/C model assembly kit
- Polycarbonate cab and molded ABS plastic bed components
- The cab component is pre-painted in yellow
- The bed can be moved manually between flat and raised positions
- Yellow deep-dish wheels are paired with 115mm lug pattern spike tires
- Stickers are included to recreate details such as front grille, air inlets, headlights, and logos
- 6WD platform with a gear-driven powertrain, triple differentials, double-wishbone suspension and a tough monocoque frame
- Chassis parts are molded in yellow
- The G6-01 can be converted to 4-wheel steering with reassembly of the suspension and a separately sold transmitter with 4WS function and R/C equipment
- A range of Hop-Up Option parts is available
Specifications:
Length: 486mm
Width: 270mm
Height: 213mm
Adjustable Gear Ratio: Yes
Bearings: Plastic Bushings
Body Material: ABS Plastic & Pre-Painted Polycarbonate
Body Stickers: Included
Chassis Material: ABS Plastic
Chassis Type: G6-01
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 6WD
Electronic Speed Control: Not Included
Motor Brushed: 540 Type
Scale: 1/24
Shock Damper: Friction type
Suspension: Fully Independent Double Wishbone
Terrain Use: Multi-Purpose
Needed to Complete:
- 2-Channel Radio
- Standard size servo
- ESC
- 7.2-7.4V battery
- Compatible charger
