Features

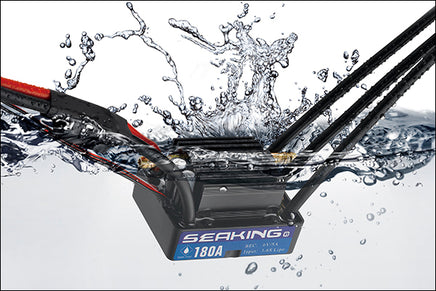

1.1 Excellent waterproof design (rates as IP 67) allows this ESC to work in water without any extra precautions;
1.2 High quality components have very strong over-current withstanding capabilities;
1.3 Patented Copper Heat Conduction technology and high-efficiency water cooling system can easily dissipate the heat produced in operation under high load;
1.4 The special firmware designed for RC boats can make the acceleration punchier and the sailing more stable;
1.5 The External Programming Port can connect to the LED Program Box for easily setting the parameters of the ESC;
1.6 Multiple protections like low-voltage cutoff protection, thermal protection and throttle signal loss protection, make the ESC more reliable;
2 Specification
2.1 Continuous Current: 180A
2.2 Peak Current: 1080A
2.3 Input: 2-6S Lipo
2.4 BEC Type: Switch Mode
2.5 BEC Output: 6V/5A
2.6 External Programming Port: Available
2.7 Boat Applicable: Boat length <130cm
2.8 Water Cooling Pipe (Inside / Outside): ?3.0 / ?5.4
2.9 Size (Include the Water Cooling Pipe): 72X48X36.6mm
2.10 Weight: 207g
