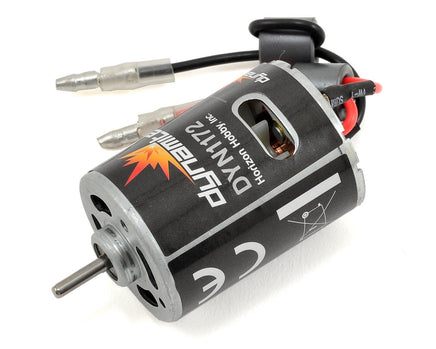

The Dynamite 15T Brushed Motor is a great replacement motor for any 15 turn application. The closed end bell design, low maintenance and factory installed wires make it an easy to operate and install option.
Specifications:
Type: Brushed
Size: 540
Bearings or Bushings: Bushing
# of Turns/Windings: 15T
Timing: No
Voltage: 4.8 - 9.6V
Cells: 4-8 Ni-Cd/Ni-MH or 2S Li-Po
Overall Diameter: 1.42 inch (36mm)
Shaft Diameter: .125" (3.175mm)
Shaft Length: 0.60 inch (15.5mm)
Overall Length: 1.98 inch (50mm)
