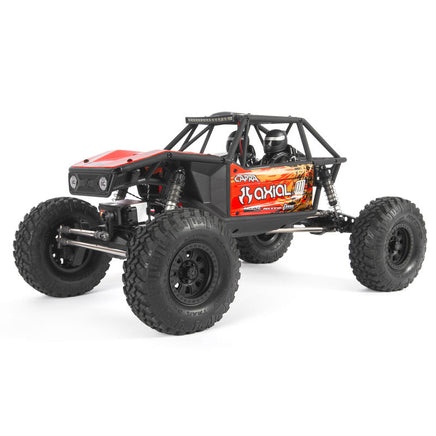

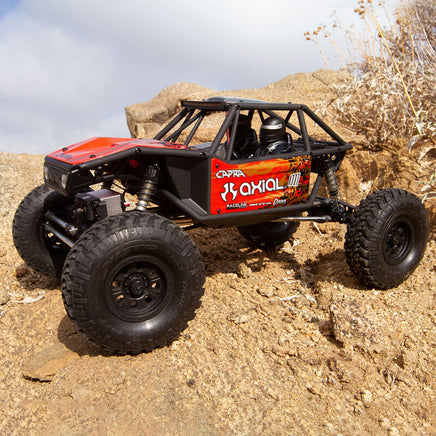

The Axial Capra 1.9 Unlimited Trail Buggy 1/10 RTR 4WD Rock Crawler an awesome option for any enthusiast looking for a rig that was designed to crawl. Currie F9 Portal Axles provide extra ground clearance at the diff pumpkin, while the included Spektrum STX3 3-channel transmitter and DIG transmission, allows on the fly adjustment between 4WD and front wheel drive with a locked rear axle to provide the tighter turning radius of front drive power. The Capra features a realistic tube chassis design and metal gears everywhere, from the center transmission to the lockers and portal axles. It rides on real-world inspired Nitto Trail Grappler 1.9 tires mounted to licensed Raceline 3-piece molded beadlock wheels.
Features:
- Transmission with DIG function enables a tighter turning radius by locking the rear axle for FWD power only
- Currie F9 Portal Axles increase ground clearance at the diff pumpkin for the best crawling performance
- Includes all-metal gears, from the center transmission to the lockers and portal axles

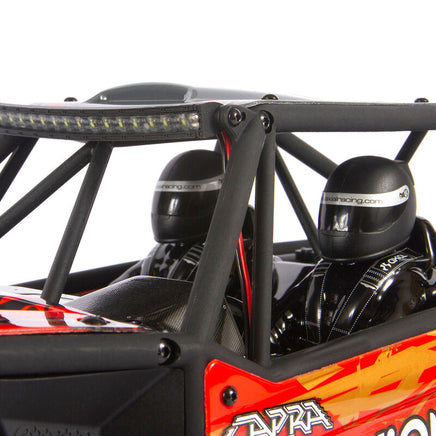

- Tube chassis design offers optimum clearance plus realistic scale looks
- All pivot points are on stainless steel balls for a durable, long-lasting suspension point
- Includes Nitto Trail Grapplers 1.9 Monster tires mounted on injection-molded, 3-piece, licensed Raceline beadlock wheels
- Adjustable oil-filled shocks feature hard anodized, threaded shock bodies and a single coilover spring
- All-metal front universal axles provide smooth action and 45 degrees of steering angle for an efficient, high-performance drivetrain
- Durable, machined aluminum universal
- 540-size, 35T brushed motor with enlarged cooling ports delivers an even balance of speed and technical crawling
- Spektrum™ STX3 3-channel, 2.4GHz radio system and receiver operate the DIG feature along with other functions
- Axle-mounted servo improves steering control in full articulation
- Finely tuned suspension geometry delivers the best crawling capabilities
Specifications:
Ground Clearance: 3" (76.2mm)
Wheel Width: 1" (25.4mm)
Wheelbase: 12.5" (318 mm)
Front Track: 8.75 in (222.2mm)
Rear Track: 8.75 in (222.2mm)
Length: 17" (432 mm)
Width: 10.25" (260 mm)
Height: 8.25" (210 mm)
Weight: 4.5lbs (2.04kg)
Max Battery Dimensions: 1.02 x 3.8 x 1.8" (26 x 98 x 47mm)
Gear Pitch: 32-Pitch
Wheel Hex Size: 12mm
Internal Gear Ratio: 5.14:1
Final Drive Ratio: 37:1
Includes:
- (1) Axial® Capra™ 1.9 Unlimited Trail Buggy 4WD RTR
- (1) Spektrum™ STX3 2.4GHz 3-Channel Radio System
- (1) Dynamite® AE-5L Brushed ESC (installed)
- (1) 540-Size 35T Brushed Motor (installed)
- (1) Product Manual
Needed to Complete:
- (1) Vehicle Battery and charger
