LIFTED OFF-ROAD ADVENTURE

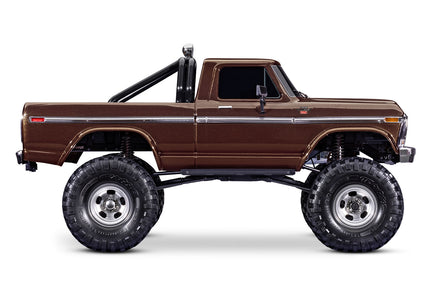

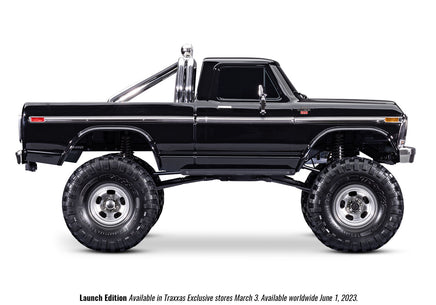

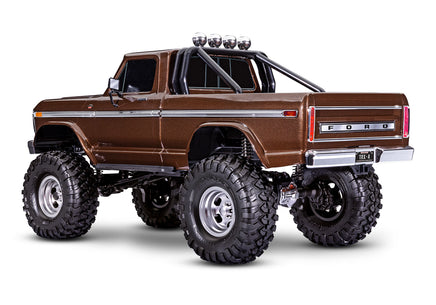

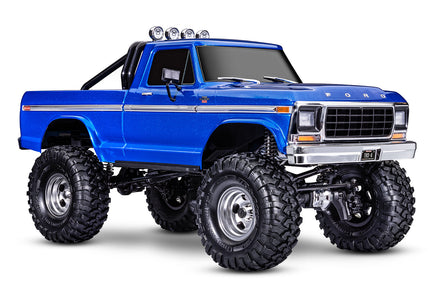

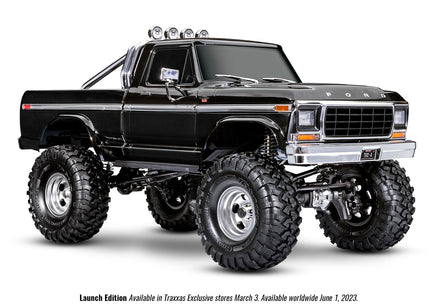

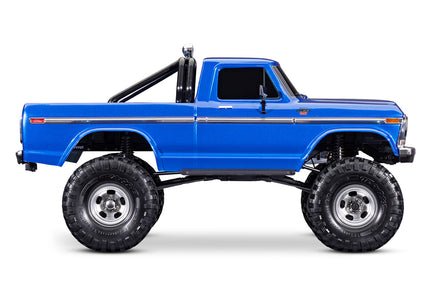

Traxxas elevates scale adventure with the lifted TRX-4 Ford F150 Ranger High Trail Edition. Thanks to its factory-installed Long Arm Lift Kit and oversize tires, the highly detailed F150 replica body stands over an inch taller than our standard TRX-4. The F150’s extended wheelbase further enhances the TRX-4’s already legendary off-road capability for even more fun on the trail. The TRX-4 High Trail Edition is the perfect vehicle for the driver who wants it all: extreme all-terrain capability, stunning scale looks, and Traxxas-Tough durability.
HIGH TRAIL EDITION
The factory-installed Long Arm Lift Kit raises F150 High Trail Edition over an inch taller for superior ground clearance. Large 2.2” mag wheels and Canyon Trail tires tame even the most technical trails to extend your scale adventures farther than ever before

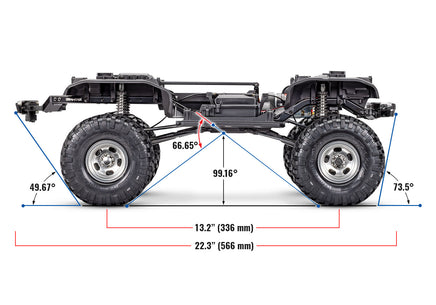

EXTENDED 336MM WHEELBASE
K10’s steel frame rails extend the wheelbase out to 336mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.
Features
-
Officially Licensed 1979 Chevrolet K10 Pickup Body
- Scale details: grille, chrome bumpers, side mirrors, door handles, and wipers
- LED-ready headlights and tail lights
- Authentic decal sheet
- Full Nylon composite wheel wells and floor pans
-
Clipless Body mounting
- Clipless design for smooth body appearance
-
Rugged internal body cage for added rigidity
- Body details mount directly to internal frame
-
Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
-
Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
- Two stage low voltage protection (LVD)
-
Motor
- Powerful Titan® 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
-
Factory-Installed Long Arm Lift Kit
- Increases ground clearance over 1”
- Maintains precise steering geometry
- Accommodates oversize 2.2” wheels and tires
-
Extended Wheelbase
- Long 336 mm wheelbase for improved stability
- Full-length 1.5 mm steel frame rails
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
-
Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
-
Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
-
Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
-
Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
-
Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steel servo horn
- Steering geometry corrected for bump steer
-
Suspension
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends
-
Extended Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Extra-long aluminum bodies for greater articulation
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
-
Oversize Wheels and Tires
- 2.2” 8-hole chrome mag wheels with hub inserts
- Pre-mounted 2.2” Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
-
Transmitter
- TQi™ 2.4GHz 4-channel transmitter
- Traxxas Link enabled
- Telemetry ready #6533 5-channel micro receiver with failsafe
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- High 13ms frame rate and near-zero latency for responsive control
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Sealed Ball Bearings
- Hex hardware with rust-resistant black oxide coating
Molded Scale Details
K10 High Trail Edition features beautiful precision-molded details for a whole new level of scale realism. The authentic chrome wheels, side mirrors, and windshield wipers provide the perfect scale touches.
Factory-Installed Long Arm Lift Kit
The Traxxas Long Arm Lift Kit includes extended GTS aluminum shocks, longer links and rod ends, extended driveshafts and T-Lock cables, and a new servo mount. The lift kit works as one coherent system not only to raise the truck, but also to maintain TRX-4’s carefully tuned suspension geometry.
Clipless Convenience
K10’s heavy-duty clipless body mounts integrate into its rugged inner fenders to form a vice-like grip. When it’s time to release the body, simply reach under the fender and pull the tabs. It’s that easy.

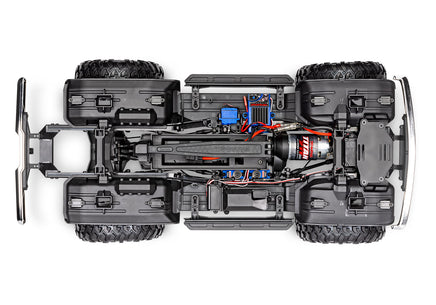

Heavy-Duty Frame Rails
A thick 1.5 mm steel ladder frame with molded cross members provides exceptional torsional rigidity to resist even the worst chassis twisting articulation. This extremely rigid backbone lets the suspension do the work it was designed to do. You’ll feel the difference on trails where the elimination of chassis flex allows for precise wheel placement when navigating technical terrain.
Chrome-Finish Differential Covers
Classic style meets modern technology underneath the K10 pickup with realistic mirror chrome differential covers. These polished details take the scale look of the front and rear portal axles to the next level.

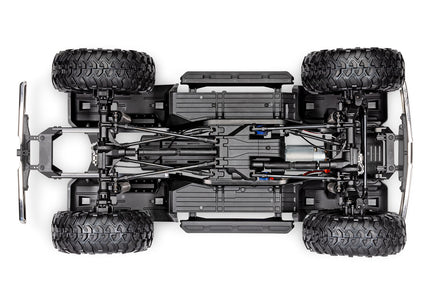

Raised Center Driveshafts and Suspension Links
TRX-4’s radical portal axle design raises the driveshafts higher to improve axle geometry and reduce driveshaft angles. Higher driveshafts and suspension links pass over obstacles to avoid high-centering your truck and reduce overall grinding wear.
High/Low Transmission
Why carry your crawler down the trail when you can drive? K10 features a high speed gear to get you to your next crawling challenge quickly. When you get there, flip the rocker switch on your transmitter to engage low range and conquer tough terrain with exceptional torque.

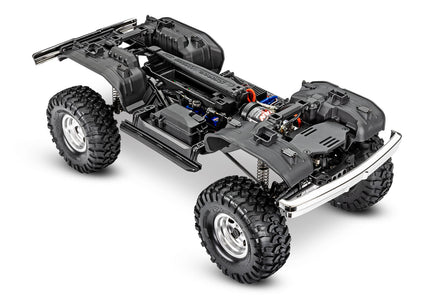

Molded Inner Fenders and Floor Pans
Tough inner fenders mount directly to the frame and shock towers to provide substantial look and feel to K10. Molded floor pans integrate into the fenders to keep rocks, mud, and twigs out of the chassis.
Titan 21T 550 Motor
Torque rules the trail! TRX-4’s massive Titan 21T motor pumps out huge torque to get you up and over anything that gets in the way. An integrated cooling fan keeps temperatures down for extended run times.
2.2” Canyon Trail Tires
K10 High Trail Edition rides on oversize Canyon Trail tires for additional ground clearance and rock-crawling performance. The ultra-soft S1-compound rubber and aggressive lug pattern delivers unmatched grip and rugged climbing action.
Extended-Length 110mm GTS Shocks
K10’s extra-long 110mm GTS coil-over shocks are oil-filled to smooth out even the roughest trails. These silver-anodized aluminum shocks deliver silky-smooth dampingand feature threaded bodies for easy ride height adjustment.
The convincing scale realism looks great and they perform even better with an O-ring cap seal and dual X-ring shaft seals.
Torque Twist Eliminated
On conventional rigs with the limited gear reduction in the differentials, motor torque is applied to the frame to the point of twisting you right off the rocks. TRX-4’s portal axle design reduces the gear ratio at the wheels, virtually eliminating torque twist through the chassis.
T-Lock™ Remote Locking Differentials
Traxxas gives you complete control over the front and rear differentials to suit your driving needs. Leave the differentials unlocked for relaxed driving on the trail. When the trail gets technical, lock the front and rear differentials, or just the front differential, for superior pull and grip over extreme terrain. Sleeved micro cables control the differential action for scale appearance, without limiting the huge suspension articulation.
Waterproof Metal Gear Servo
A full-metal gear digital servo gives you the durability and steering authority you need to confidently and reliably power through tough challenges.
