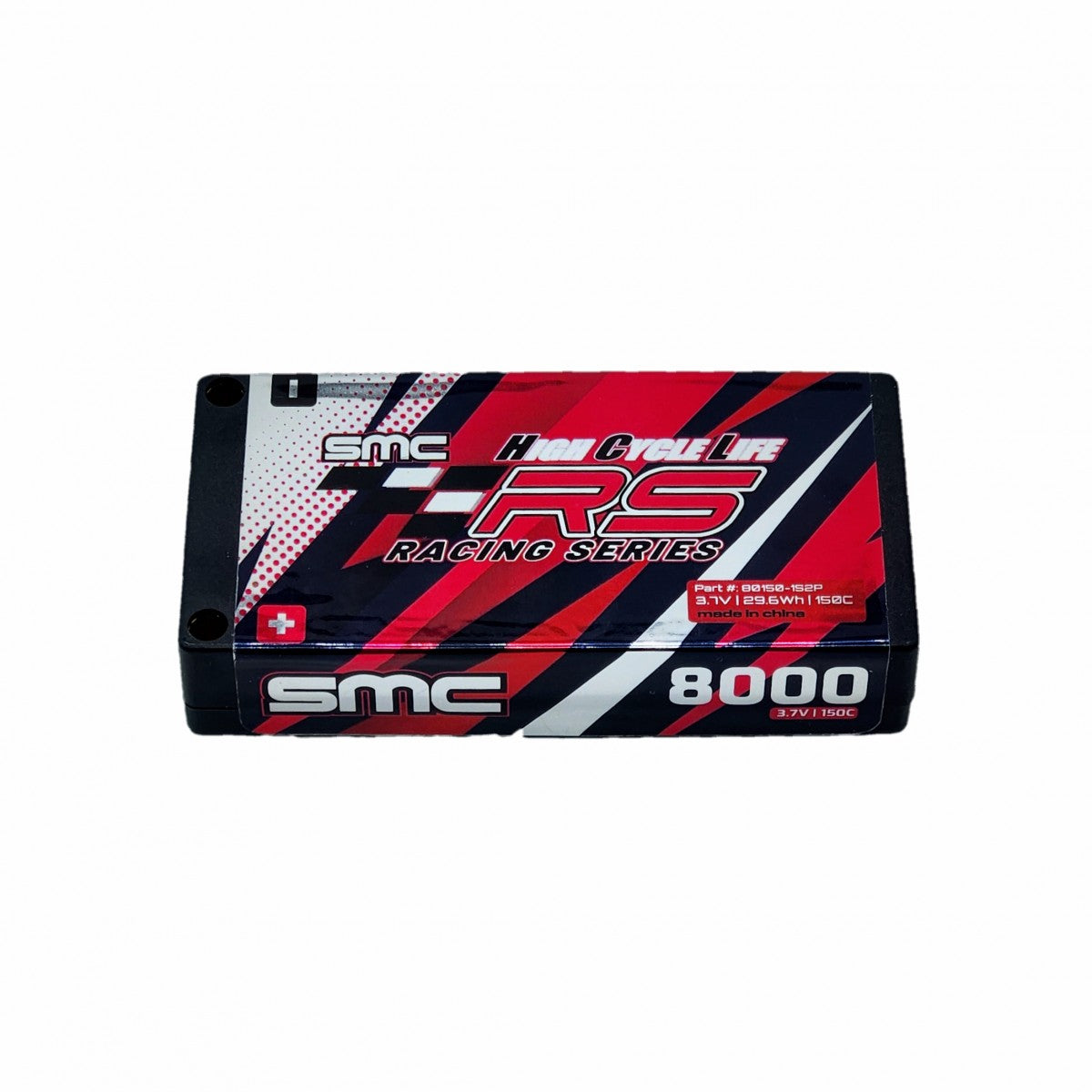

HCL-RS 3.7V-8000mAh-150C 5mm Inboard Hardcase. ROAR approved
Introducing the HCL-RS line of race packs (High Cycle Life - Race Series). These formulations are not the generic cells/packs you can get with different color stickers on them. These are recipes developed for us by an independent factory. While we have recently pushed mAh and C rates for applications like flight packs and speed run packs, the demands of racing are different. These new formulations hold better voltage, sag less under loads seen in off and on road racing by optimizing the IR and mAh per cubic centimeter of the cells. Scroll down the page to see a discharge graph.
HCL-RS 3.7V-8000mAh-150C 5mm Inboard Hardcase. ROAR approved
Introducing the HCL-RS line of race packs (High Cycle Life - Race Series). These formulations are not the generic cells/packs you can get with different color stickers on them. These are recipes developed for us by an independent factory. While we have recently pushed mAh and C rates for applications like flight packs and speed run packs, the demands of racing are different. These new formulations hold better voltage, sag less under loads seen in off and on road racing by optimizing the IR and mAh per cubic centimeter of the cells. Scroll down the page to see a discharge graph.
True mAh +/- 5%: 8000mAh
Voltage: 3.7V
C rate: 150C
Power Factor: TDB For more information click here
Size: 18.5mm x 47mm x 93mm Hardcase
Weight: 163gr
Wire size: 5mm inboard tubes with 2mm balance tube
Charge rate: 1C to 5C please note that a higher charge rate will put less mAh into the pack and will reduce cycle life

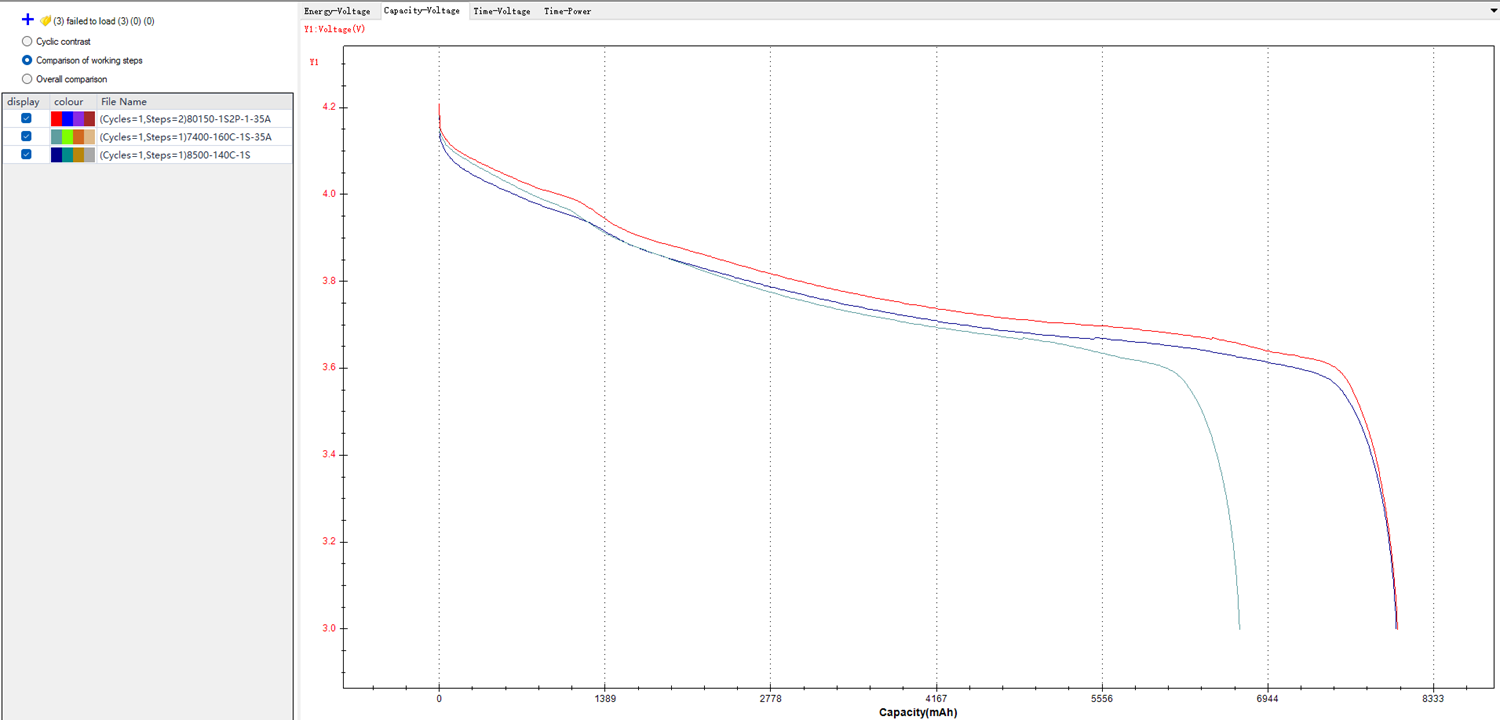

The graph below shows our 8000-150C-1S at a 35 amp discharge versus a 7400-160C-1S and 8500-140C sold under different brands/label. As you can see you get better voltage under load througout the discharge curve and better capacity/mAh.
True mAh +/- 5%: 5200mAh
Voltage: 14.8V
C rate: 50C
Power Factor: TBD For more information click here
Size: 49mm x 47mm x 139mm Hardcase
Weight: 573gr
