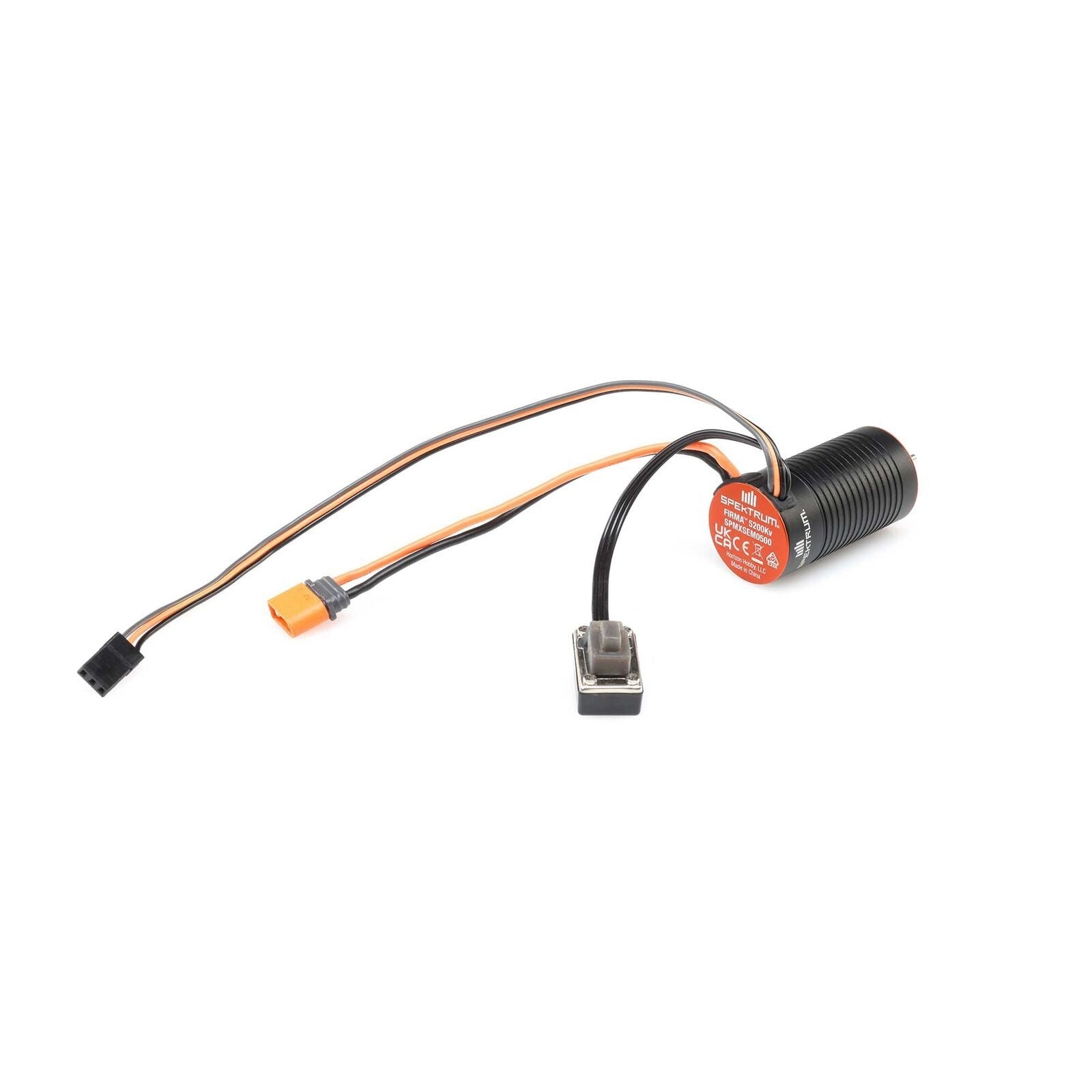

The Spektrum™ Firma™ 30-amp Sensored Brushless ESC and motor 2-in-1 combo is waterproof and designed specifically for the 1/18 Losi Mini LMT 4X4 Monster Truck RTR. This ESC and motor combo will take your Mini LMT excitement to the next level!
The Spektrum™ Firma™ 30-amp Sensored Brushless ESC and motor 2-in-1 combo is waterproof and designed specifically for the 1/18 Losi Mini LMT 4X4 Monster Truck RTR. It features a high-precision magnetic encoder and rotor position sensor that provides an excellent one to one control feel when driving at any speed and at any angle. This advancement in sensored motor control allows the ESC to match the throttle input to the motor's RPM with unmatched precision.
This ESC and motor 2-in-1 Combo is an excellent choice to complete your 1/18 Losi Mini LMT 4X4 Monster Truck running 2S or 3S LiPo power. Whether you are bashing or competing with your Mini LMT, this combo is the perfect system.
Spektrum Firma 5200Kv Motor and ESC Combo Features
- Fast, powerful 32-bit ARM M4 processor
- Waterproof
- Easy programming
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer

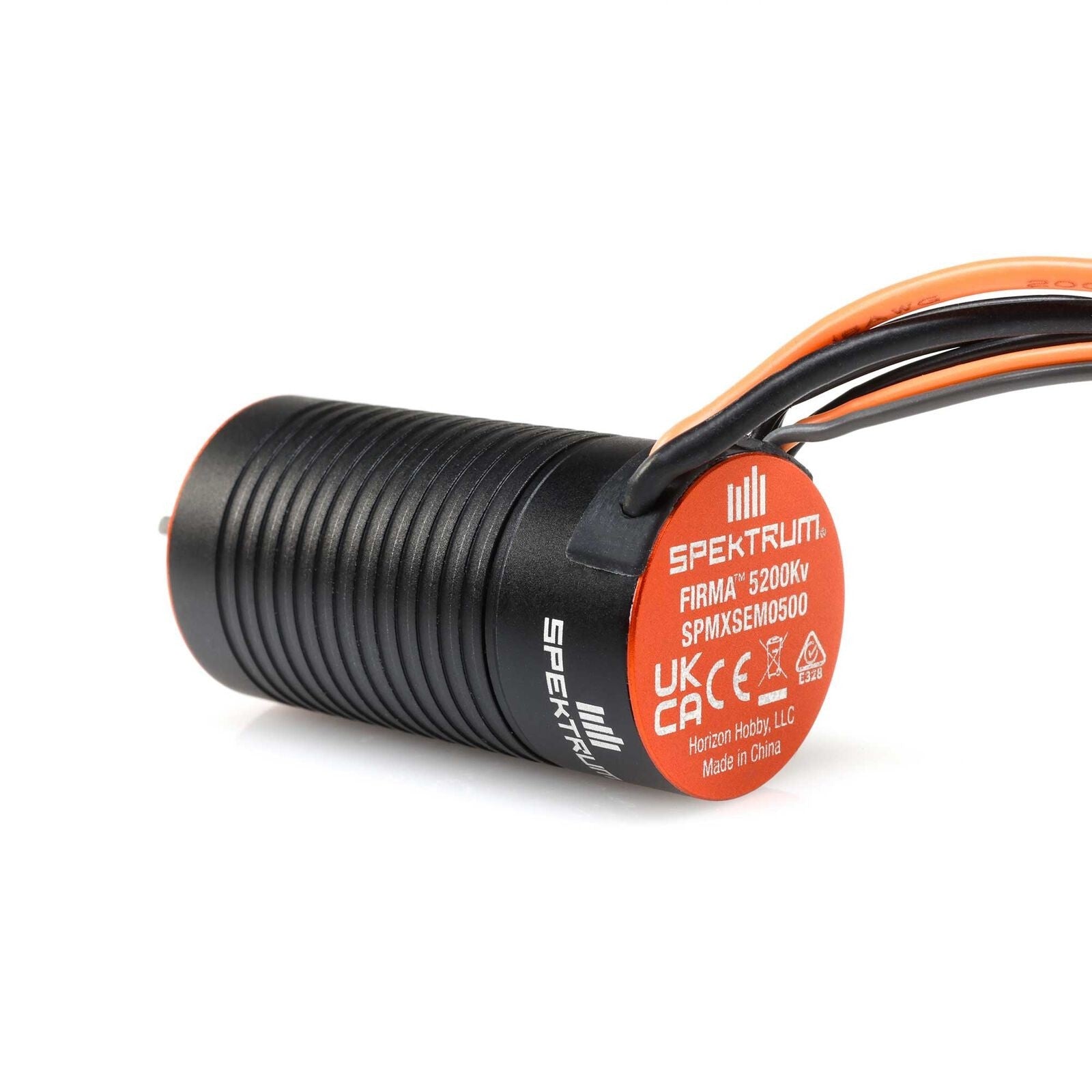

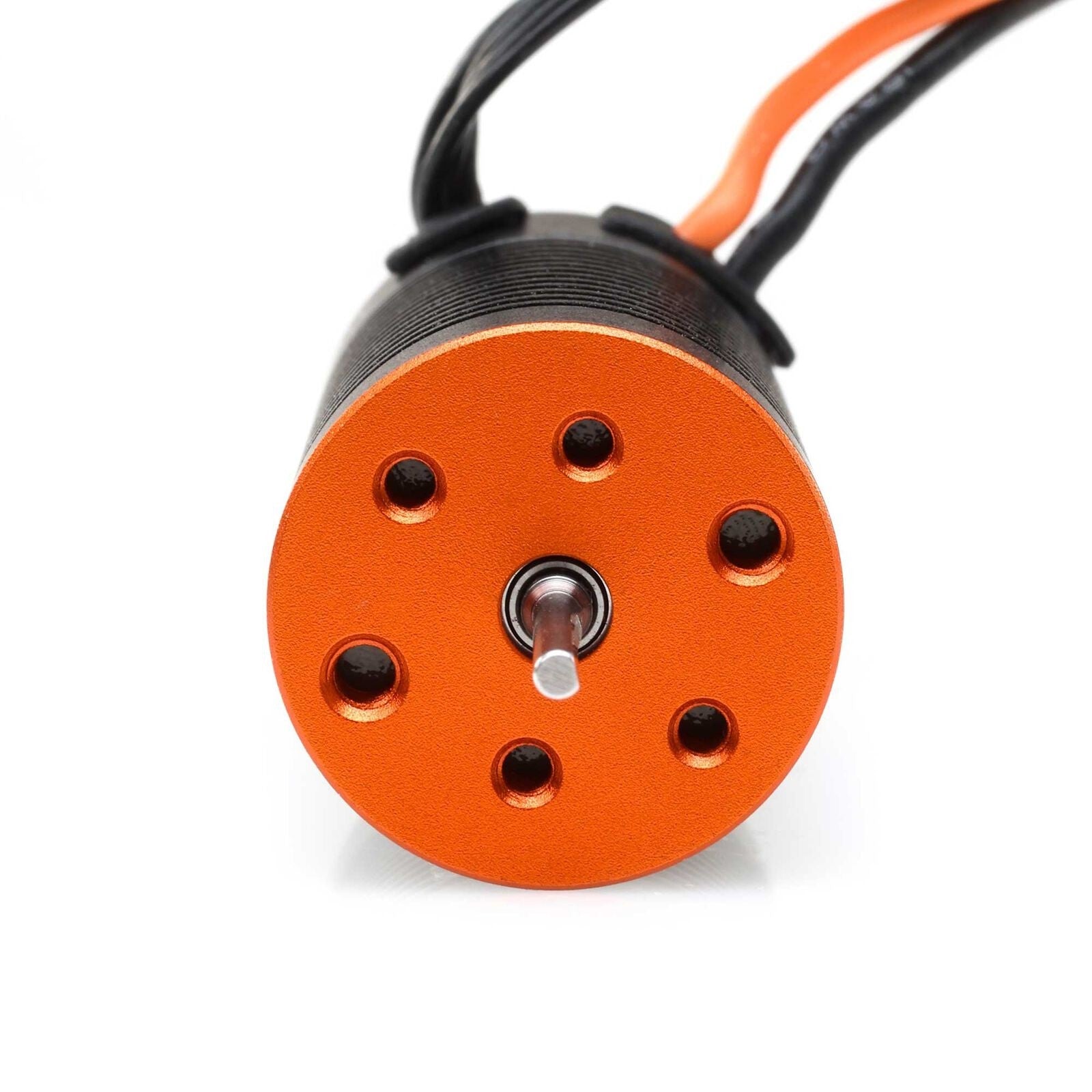

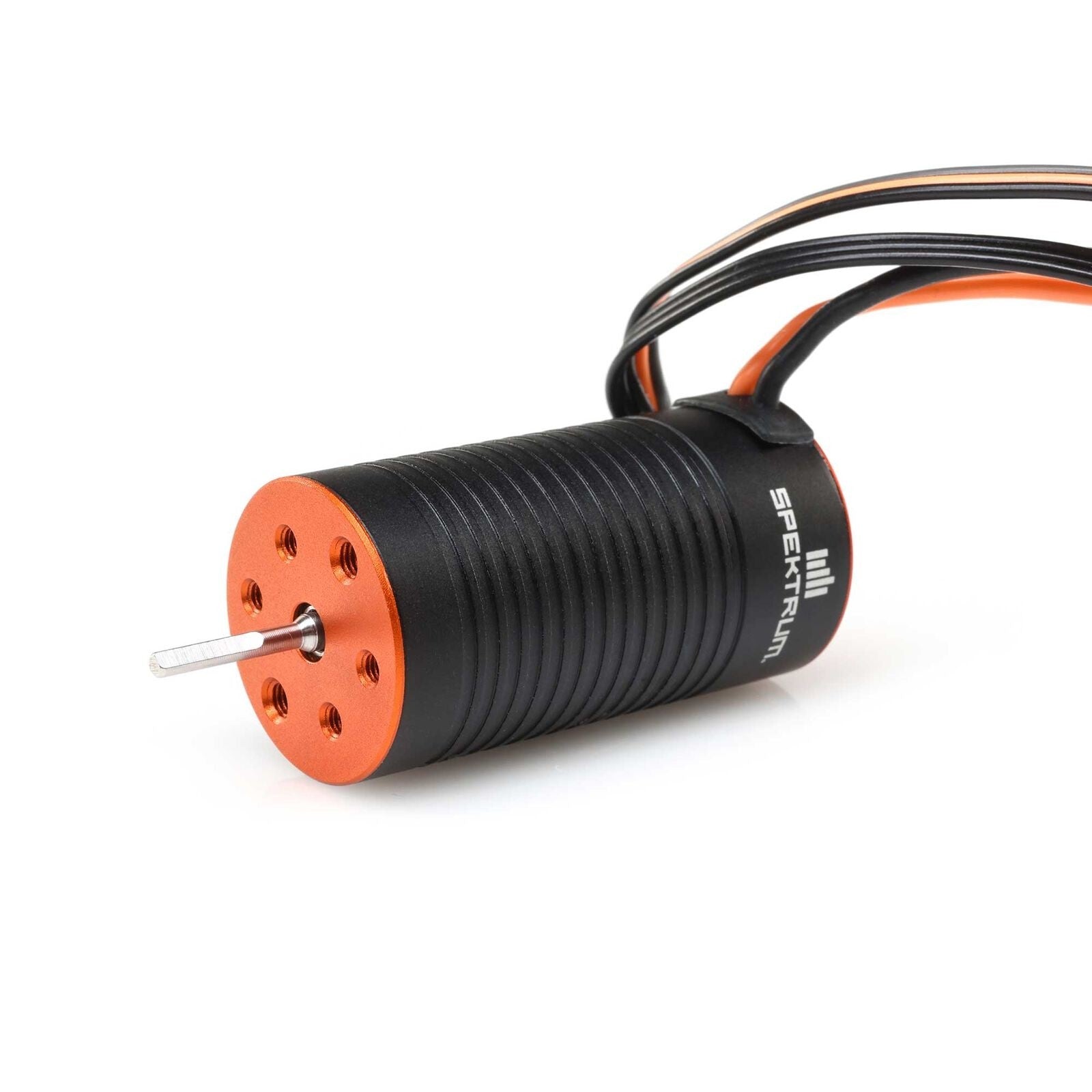

- Includes high performance and durability Spektrum Firma 5200kV Sensored Brushless motor
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Aluminum construction helps with heat dissipation
- Adjustable high-power BEC
- High heat-resistant IC2™ connectors, backwards compatible with EC2™ connectors
Product Specs
Application
Losi Mini LMT
Auto Cutoff
Yes
BEC
Yes
BEC Continous Current
2A
BEC Type
Switching
Connector Type
IC2
Forward
Yes
Input Voltage
2S LiPo
LiPo Compatibility
2S, 3S
Maximum Continuous Current
30A
Motor Type
Brushless
Number of Cells
2-3S LiPo, 6-9 Cells NiMH
Number of Poles
4
Outer Diameter
0.94" (24 mm)
Output
6V/7.4V Adjustable, Continuous Current 2A
Overload Protection
Yes
Product Length
1.8" (46 mm)
Product Weight
2.7oz.
RPM/Volt (Kv)
5200Kv
Shaft Diameter
0.07" (2 mm)
Shaft Length
0.53" (13 mm)
